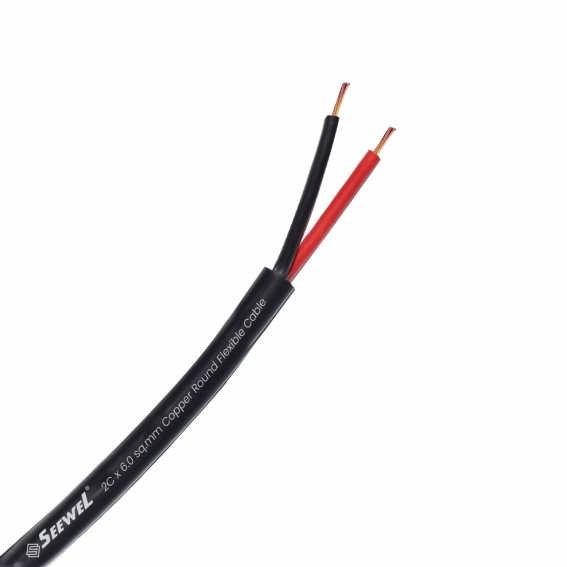

Size: 0.75 sq.mm to 150 sq.mm
Outer Colour:Black
Outer Colour: Black
Core colour identification:
(Size: 0.75 to 25) 2 Core: Red & Black
(Size: 0.75 to 150) 3 Core: : Red, Black, Yellow / Green Line
(Size: 0.75 to 150) 4 Core: Red, Black, Yellow / Green Line & Blue
(Size: 0.75 to 50) 5 Core: Red, Black, Yellow / Green Line, Blue & Grey
| Cond.Area | Max conductor resistance at 20*C | Nom Thickness of Insulation | Appx.Dia over Insulation | Nom.Sheath Thikness | Appx.Overall Diameter | current | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2 core | 3 core | 4 core | 2 core | 3 core | 4 core | rating | ||||
| Sq.mm | Ohms/km | mm. | mm. | mm. | mm. | mm. | mm. | mm. | mm. | Amps |
| 0.75 | 26.0 | 0.6 | 2.5 | 0.9 | 0.9 | 0.9 | 6.8 | 7.2 | 7.8 | 7 |
| 1.00 | 18.1 | 0.6 | 2.6 | 1.2 | 1.2 | 1.2 | 7.5 | 8.0 | 8.7 | 11 |
| 1.50 | 12.1 | 0.7 | 3.0 | 1.2 | 1.2 | 1.3 | 8.6 | 8.9 | 10.0 | 14 |
| 2.50 | 7.41 | 0.8 | 3.7 | 1.3 | 1.3 | 1.3 | 10.0 | 10.6 | 11.6 | 19 |
| 4.00 | 9.95 | 0.8 | 4.3 | 1.0 | 1.0 | 1.0 | 11.0 | 11.5 | 13.0 | 26 |
| Cond.Area | Max conductor resistance at 20*C | Nom Thickness of Insulation | Appx.Dia over Insulation | Nom.Sheath Thikness | Appx.Overall Diameter | current rating | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 core | 3 core | 4 core | 2 core | 3 core | 4 core | 2 core single phase ac | 3 or 4 core 3 phase ac | ||||
| Sq.mm | Ohms/km | mm. | mm. | mm. | mm. | mm. | mm. | mm. | mm. | Amps | Amps |
| 6 | 3.30 | 0.8 | 5.1 | 1.10 | 1.10 | 1.20 | 12.5 | 13.3 | 14.8 | 34 | 30 |
| 10 | 1.91 | 1.0 | 6.6 | 1.30 | 1.40 | 1.40 | 15.6 | 16.6 | 18.6 | 44 | 39 |
| 16 | 1.21 | 1.0 | 8.0 | 1.40 | 1.40 | 1.40 | 18.6 | 19.9 | 22.2 | 61 | 55 |
| 25 | 0.780 | 1.2 | 10.0 | 1.40 | 1.50 | 1.60 | 23.0 | 24.6 | 27.0 | 69 | 60 |
| 35 | 0.554 | 1.2 | 11.0 | 1.60 | 1.60 | 1.70 | 25.3 | 26.0 | 28.0 | 88 | 777 |
| 50 | 0.386 | 1.4 | 13.4 | 2.00 | 2.00 | 2.00 | 30.1 | 32.0 | 33.0 | 116 | 102 |
